Welcome to Victor Nickelalloys, your trusted partner in Abuja for premium-grade nickel alloy solutions. We specialize in supplying and manufacturing robust Inconel 617 forged fittings, engineered to meet the most demanding industrial challenges right here in Nigeria. Our commitment is to provide local industries with reliable, high-performance components that ensure longevity and safety in critical operations, backed by our expert technical support and deep understanding of the regional market’s unique needs.
Inconel 617 is a standout material due to its sophisticated composition, primarily a blend of nickel, chromium, and cobalt, with significant additions of aluminum and molybdenum. This unique recipe gives the forged fittings exceptional strength and resistance to oxidation, even when exposed to extreme temperatures. They maintain impressive mechanical integrity, including high tensile strength and excellent creep-rupture properties, making them incredibly durable under intense stress and thermal cycling.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

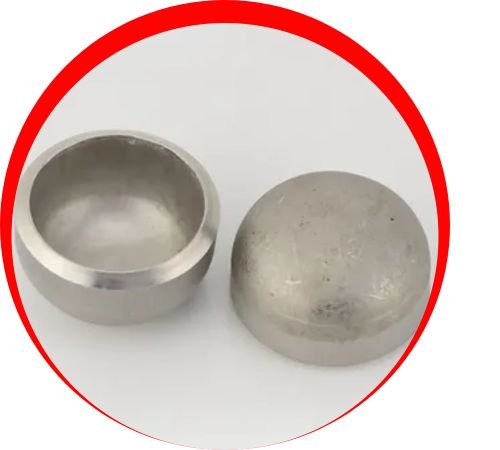

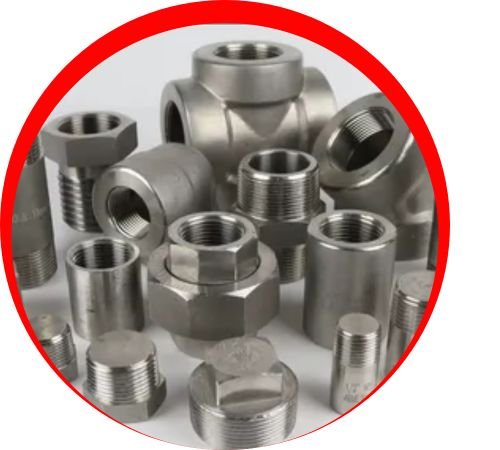

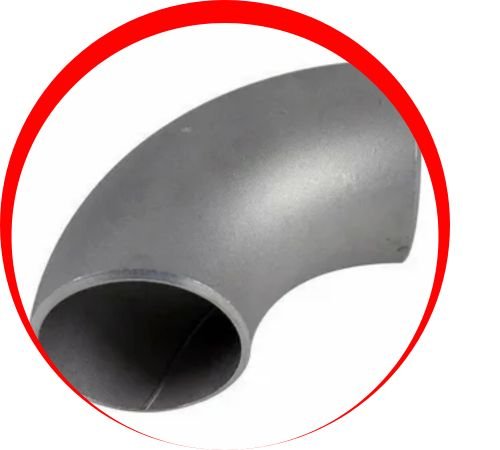

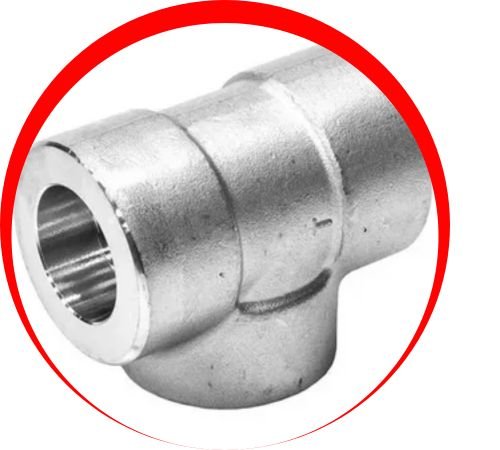

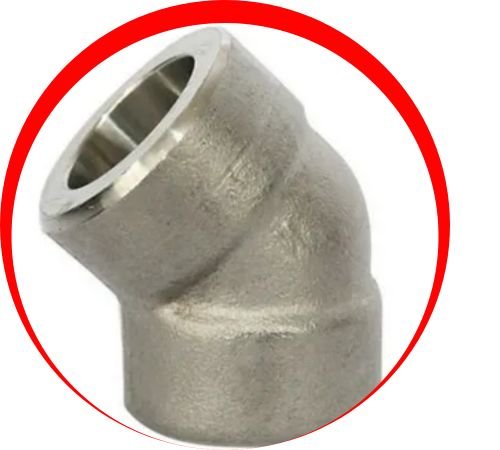

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Victor Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Abuja, Nigeria, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Nigeria, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
The remarkable resilience of Inconel 617 forged fittings makes them indispensable in sectors where failure is not an option. They are vital components in high-temperature industrial furnaces, gas turbine engines, and critical petrochemical processing systems. You’ll also find them essential in power generation, particularly in advanced nuclear reactors, and in aerospace engineering for propulsion systems. Their ability to withstand corrosive environments and intense heat ensures operational safety and efficiency in these challenging applications.
