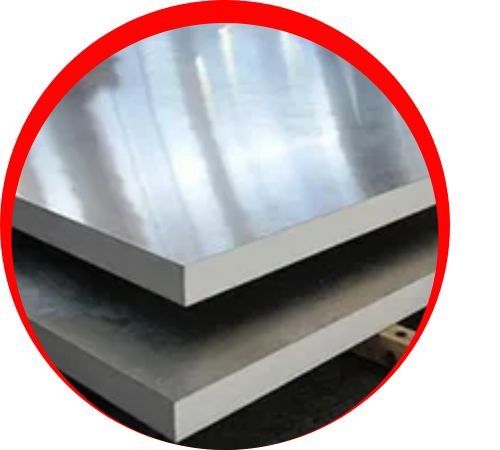

Victor Nickelalloys is a well-respected manufacturer and supplier of top-notch Nimonic 75 Sheets and Plates, based in Abuja, Nigeria. The company focuses on crafting high-performance nickel-based alloys that adhere to strict international standards for durability, strength, and resistance to corrosion. Their Nimonic 75 Sheets and Plates are designed to excel in high-temperature and high-stress situations. Thanks to cutting-edge manufacturing technology, thorough quality control, and a strong commitment to customer satisfaction, Victor Nickelalloys provides dependable, long-lasting products for industries like aerospace, power generation, petrochemical, and marine engineering around the world.
The Nimonic 75 Sheets and Plates from Victor Nickelalloys primarily consist of nickel (about 80%) and chromium (roughly 20%), with small amounts of titanium and carbon added to boost strength and oxidation resistance. These alloys showcase impressive mechanical properties, including high tensile strength, excellent creep resistance, and solid hardness even at elevated temperatures. This well-balanced composition guarantees remarkable corrosion and heat resistance, making Nimonic 75 perfect for extended use in extreme thermal and mechanical conditions.
| Standards : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | C | Mn | Si | Cu | Fe | Ni | Cr | Ti |
| Nimonic 75 | 0.08-0.15 | 1.0 max | 1.0 max | 0.5 max | 5.0 max | Bal | 18.0-21.0 | 0.2-0.6 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.37g/cm3 | 1340 – 1380 | Psi – 104,000 | Psi – 40,000 | 42 % |
| Grade | Density | Melting Point |
| Nimonic 75 | 8.4 g/cm3 | 1374°C-1420 °C |
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic 75 | 2.4951 / 2.4630 | N06075 |
At Victor Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Abuja, Nigeria, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Nigeria, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find Nimonic 75 Sheets and Plates from Victor Nickelalloys widely utilized in industries that need materials capable of withstanding high temperatures and oxidation. They’re perfect for components in gas turbines, parts for jet engines, heat treatment fixtures, and exhaust systems. Additionally, they play a vital role in power generation, chemical processing, and nuclear sectors where durability and reliability are essential. Their ability to maintain mechanical strength and resist corrosion under thermal stress makes them a go-to choice for manufacturing components that require consistent performance and longevity in demanding industrial settings.
