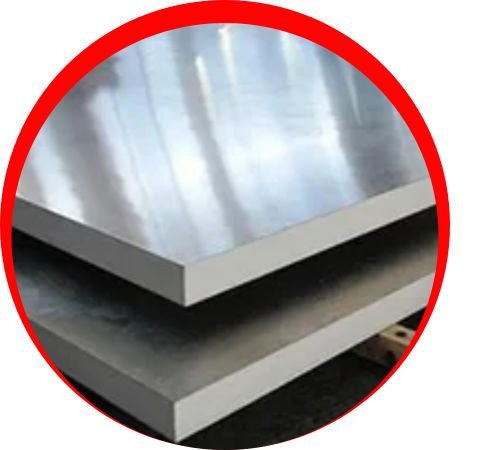

Victor Nickelalloys stands out as a reliable manufacturer and supplier of **Nimonic 90 Sheets and Plates** right here in **Abuja, Nigeria**. We specialize in high-performance nickel-chromium-cobalt alloy materials that are built to endure extreme conditions. Our Nimonic 90 Sheets and Plates are celebrated for their remarkable strength, resistance to oxidation, and durability even at high temperatures, making them a go-to choice in demanding industries. With our state-of-the-art manufacturing facilities and rigorous quality assurance processes, Victor Nickelalloys guarantees products that align with international standards, offering dependable solutions for aerospace, power generation, chemical processing, and various high-stress engineering applications both in Nigeria and around the globe.
The composition of Nimonic 90 Sheets and Plates includes **nickel (approximately 60%), chromium (around 20%), and cobalt (about 15%)**, along with trace amounts of titanium, aluminum, and iron. This alloy is known for its impressive tensile and creep-rupture strength, capable of withstanding temperatures up to **950°C**. It boasts excellent oxidation and corrosion resistance, paired with good ductility and weldability. The mechanical properties feature a **tensile strength of roughly 1000 MPa** and exceptional thermal stability, making it perfect for high-stress, high-temperature environments.
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
| Nimonic 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 1150 MPa | 725 MPa | 30% |
| Grade | Density | Specific Gravity | Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | Electrical Resistivity (microhm-cm (at 68 Deg F) | Melting Point (Deg F) |
| Alloy 90 | 8.18g/cm³ | 1370°C | 12.7 μm/m °C (20 – 100°C) | 82.5 kN/mm² | 213 kN/mm² 227 / 240 kN/mm² |
| 0.296 lb/in³ | 2500°F | 7.1 x 10-6 in/in °F (70 – 212°F) | 11966 ksi | 30894 ksi 32924 / 34810 ksi |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic 90 | 2.4632 | N07090 |
At Victor Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Abuja, Nigeria, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Nigeria, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nimonic 90 Sheets and Plates find extensive applications in the **aerospace, gas turbine, and power generation** sectors due to their ability to retain strength under elevated temperatures. They are commonly used in **turbine blades, exhaust valves, combustion chambers, heat exchangers, and high-temperature fasteners**. In the chemical and petrochemical industries, they excel in corrosive and oxidative environments. Their outstanding mechanical properties make them ideal for **engine components, pressure vessels, and furnace parts**, where resistance to heat, oxidation, and mechanical stress is essential for long-lasting performance and reliability.
