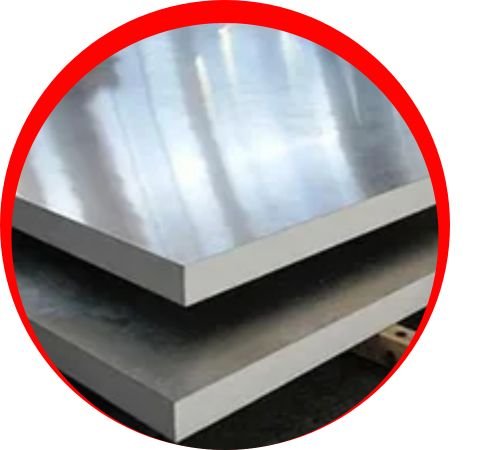

Victor Nickelalloys stands out as a top-notch manufacturer and supplier located in Abuja, Nigeria, specializing in high-quality Niobium Sheets and Plates. These products are celebrated for their remarkable strength, resistance to corrosion, and stability at high temperatures. Crafted from high-purity niobium, they’re perfect for applications that demand exceptional chemical inertness and great formability. At Victor Nickelalloys, the focus is on precise manufacturing, ensuring a smooth surface finish and adhering to strict quality standards to satisfy the needs of advanced engineering sectors. Niobium Sheets and Plates find their place in various industries, including electronics, chemical processing, aerospace, and nuclear, where performance and reliability in extreme conditions are crucial.
These sheets and plates primarily consist of niobium (Nb), with small amounts of tantalum, titanium, and tungsten added to boost their mechanical and thermal stability. With a melting point around 2477°C, niobium offers impressive ductility and weldability. Mechanically, it boasts a tensile strength ranging from 400 to 550 MPa, maintaining its strength even under high temperatures. Additionally, niobium is known for its exceptional resistance to oxidation and corrosion in both acidic and alkaline environments, making it a go-to choice for applications that require durability and chemical inertness.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

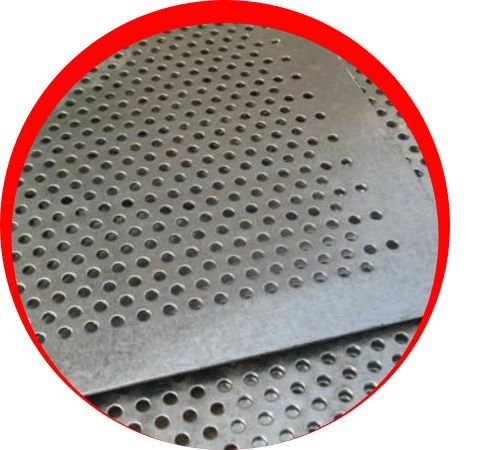

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |

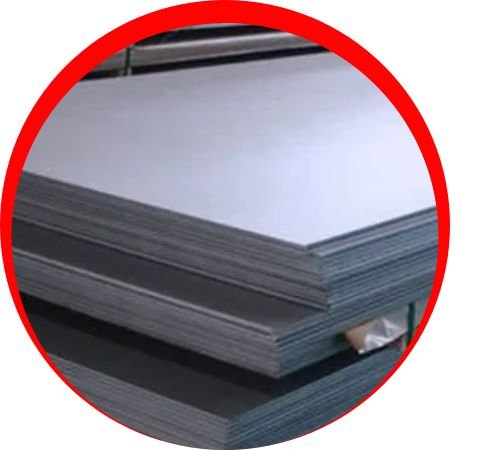

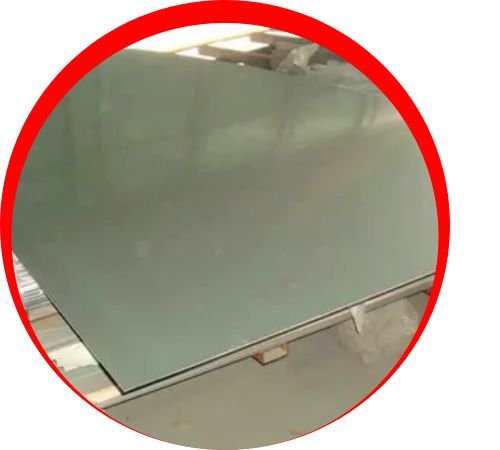

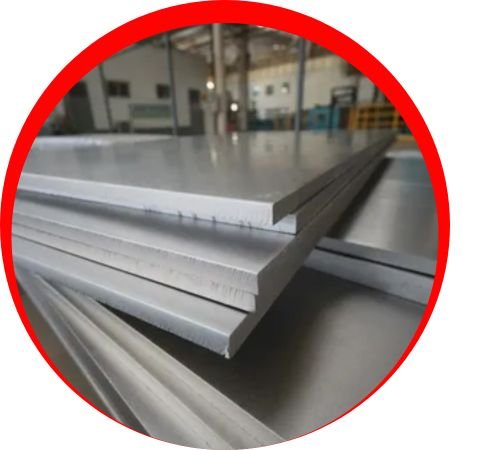

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
At Victor Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Niobium Sheet and Plates in Abuja, Nigeria, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Nigeria, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Niobium Sheets and Plates are widely utilized in industries that need materials with outstanding heat and corrosion resistance. They play a vital role in manufacturing chemical processing equipment, heat exchangers, reactors, and furnace components. In the electronics field, niobium is essential for capacitors, superconductors, and semiconductor components. The aerospace and nuclear sectors rely on these sheets and plates for high-temperature applications and environments exposed to radiation. Their excellent formability, biocompatibility, and stability make them ideal for both industrial and scientific uses where precision and reliability are paramount.
