Victor Nickelalloys, a well-respected manufacturer and supplier located in Abuja, Nigeria, specializes in top-quality Waspalloy Bars that are engineered for outstanding performance in high-temperature and high-stress situations. These bars are crafted using cutting-edge metallurgical techniques to guarantee exceptional strength, corrosion resistance, and durability. Renowned for their remarkable creep and oxidation resistance, Waspalloy Bars from Victor Nickelalloys are a go-to choice for applications that require reliability under extreme thermal and mechanical pressures. With a precise chemical composition and consistent quality, these bars adhere to international standards, making them perfect for industries like aerospace, gas turbine, and power generation that demand long-lasting, high-performance materials.
Waspalloy Bars are made from a nickel-based superalloy that includes essential elements such as nickel, chromium, cobalt, molybdenum, titanium, and aluminum. This unique blend delivers impressive strength and oxidation resistance at temperatures reaching up to 870°C (1600°F). They boast a tensile strength of about 1400 MPa, along with exceptional creep and fatigue resistance. Thanks to its gamma-prime strengthening phase, the alloy remains stable even when exposed to high temperatures for extended periods. Waspalloy also provides solid corrosion resistance in both oxidizing and reducing environments, ensuring that dimensional and structural integrity is maintained, even in challenging thermal conditions.
| Standards : | ASTM B637, ASME SB637, ISO 9723, ISO 9724, ISO 9725, SAE AMS 5704, SAE AMS 5706, SAE AMS 5707, SAE AMS 5708, SAE AMS 5709, SAE AMS 5828, SAE MAM 5706, AECMA PrEN 2193, AECMA PrEN 2194, AECMA PrEN 2406, AECMA PrEN 2958, AECMA PrEN 2959, AECMA PrEN 2960, AECMA PrEN 3220 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

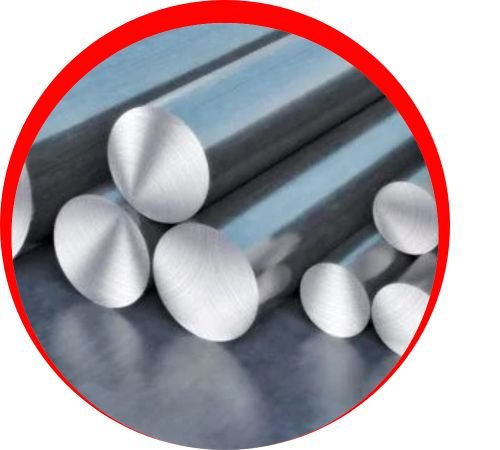

| Round bar size : | Diameter: 3-~800mm |

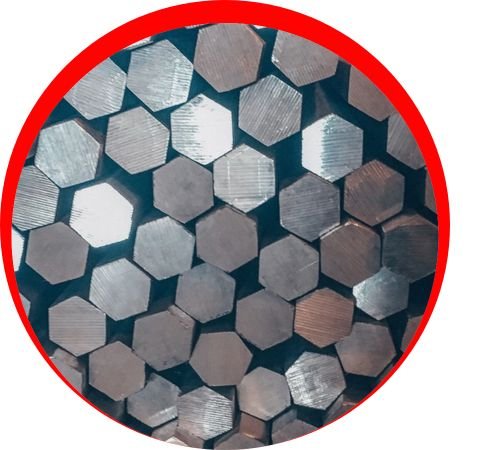

| Hex Bar size : | 2-100mm A/F |

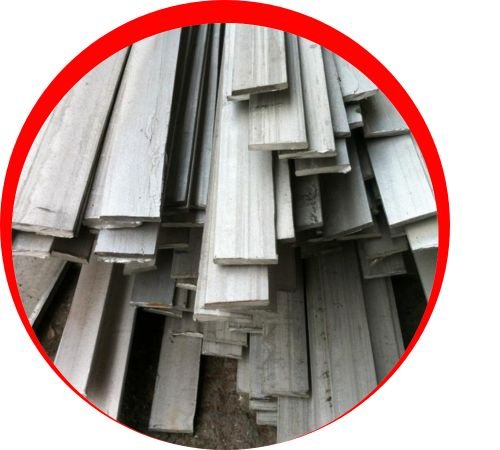

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

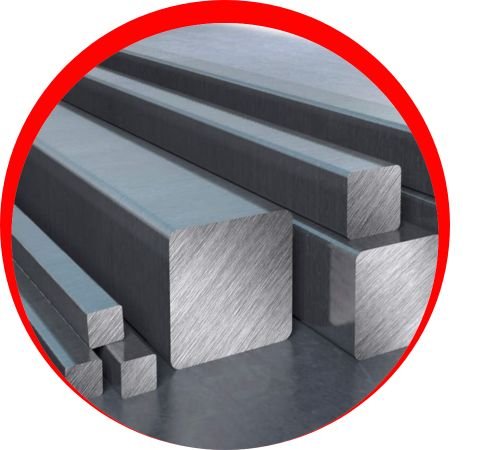

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Mo | C0 | Ai | Ti | B | Zr |
| Waspaloy | 0.10 max | 0.10 max | 0.15 max | 0.015 max | 0.10 max | 2.00 max | Balance | 18.00 – 21.00 | 5.00 max | 12.00 – 15.00 | 1.60 max | 3.25 max | 0.01 max | 0.08 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.296 lb/in3 (8.19 g/cm3 ) | 2425-2475°F (1330-1360°C) | 175 ksi | 120 ksi | 15% |
At Victor Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Waspalloy Bar in Abuja, Nigeria, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Nigeria, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
The Waspalloy Bars from Victor Nickelalloys find extensive use in aerospace applications, particularly for turbine engine components like compressor discs, shafts, blades, and fasteners. In the power generation field, they are utilized in gas turbine rotors and high-temperature structural parts. The chemical processing industry relies on them for equipment that faces corrosive and high-heat conditions. Moreover, Waspalloy Bars are favored in automotive racing, defense systems, and industrial furnaces due to their exceptional strength retention and oxidation resistance. Their ability to endure extreme operational environments makes them a preferred choice across various demanding applications.
